Sentinel配置持久化到Nacos（基于push模式）

2年前 / java / 355浏览

Sentinel配置持久化到Nacos（基于push模式）

修改后代码位置: https://gitee.com/maju_blogs/sentinel-dashboard-nacos/tree/master/sentinel-dashboard

1.从github上下载源码

git clone https://github.com/alibaba/Sentinel.git

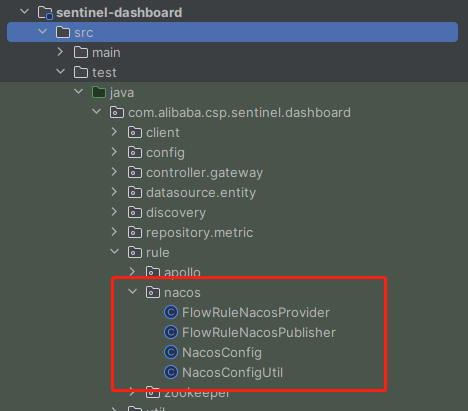

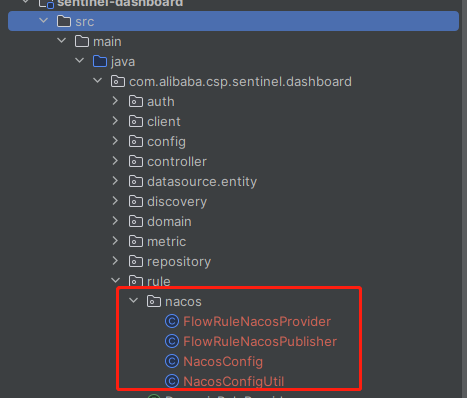

2.复制test下的nacos文件到rule下

3.修改NacosConfig，配置序列化方式以及nacos连接

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.alibaba.csp.sentinel.dashboard.rule.nacos;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.*;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.fastjson.JSON;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigFactory;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.List;
import java.util.Properties;

/**
 * @author Eric Zhao
 * @since 1.4.0
 */
@Configuration
public class NacosConfig {

    @Value("${nacos.address}")
    private String address;

    @Value("${nacos.namespace}")
    private String namespace;

    @Value("${nacos.username}")
    private String username;

    @Value("${nacos.password}")
    private String password;

    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    @Bean
    public ConfigService nacosConfigService() throws Exception {
        Properties properties = new Properties();
        properties.put(PropertyKeyConst.SERVER_ADDR, address);
        properties.put(PropertyKeyConst.NAMESPACE, namespace);
        properties.put(PropertyKeyConst.USERNAME, username);
        properties.put(PropertyKeyConst.PASSWORD, password);
        return ConfigFactory.createConfigService(properties);
    }
}

4.在application下增加配置

nacos.address=ydfm.cc:8848
nacos.namespace=sentinel-rule
nacos.username=nacos
nacos.password=nacos
server.port=8889

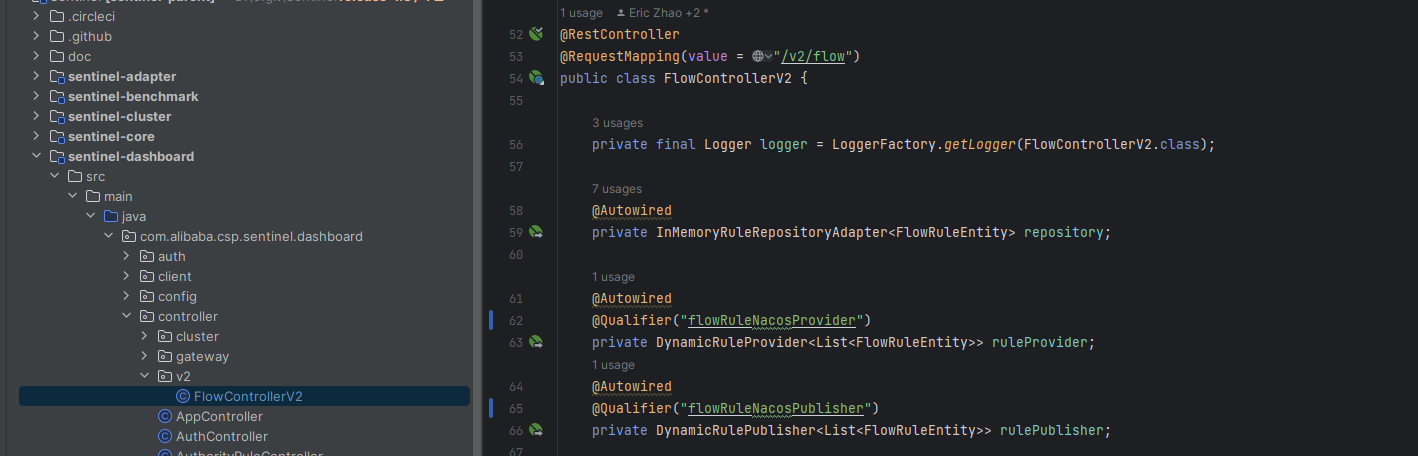

5.修改controller下FlowControllerV2使用的bean为nacos

    @Autowired
    @Qualifier("flowRuleNacosProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

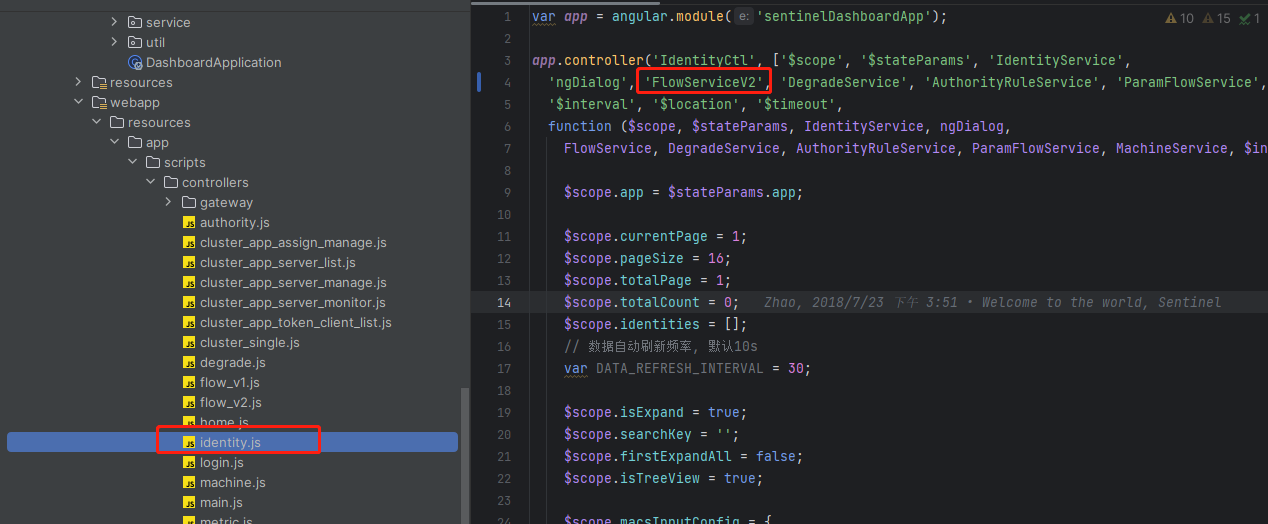

6.修改前端页面，将V1改成V2

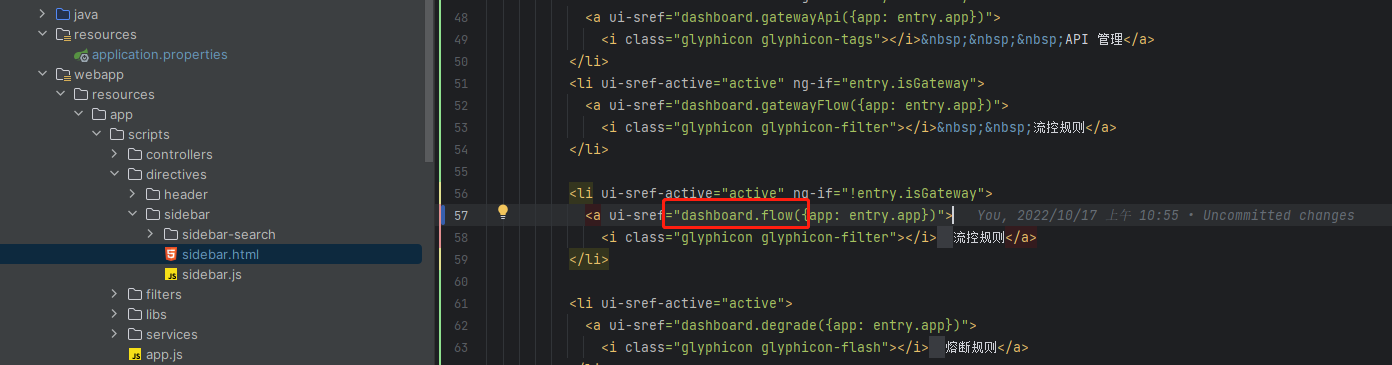

修改页面

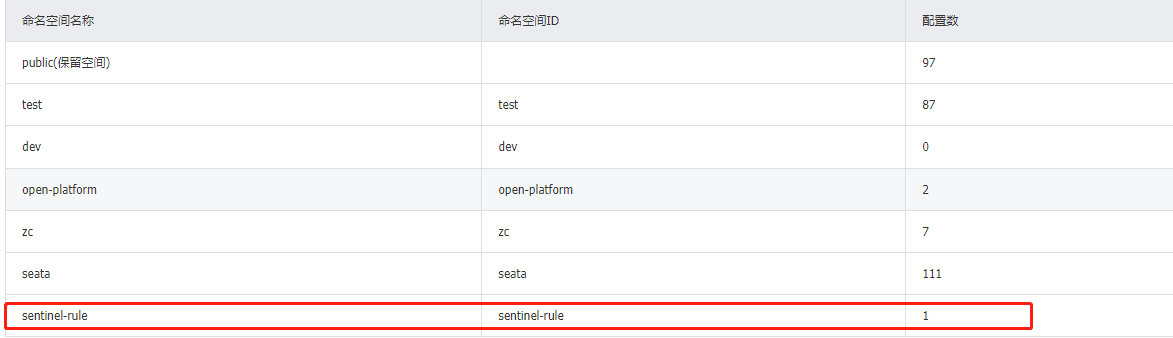

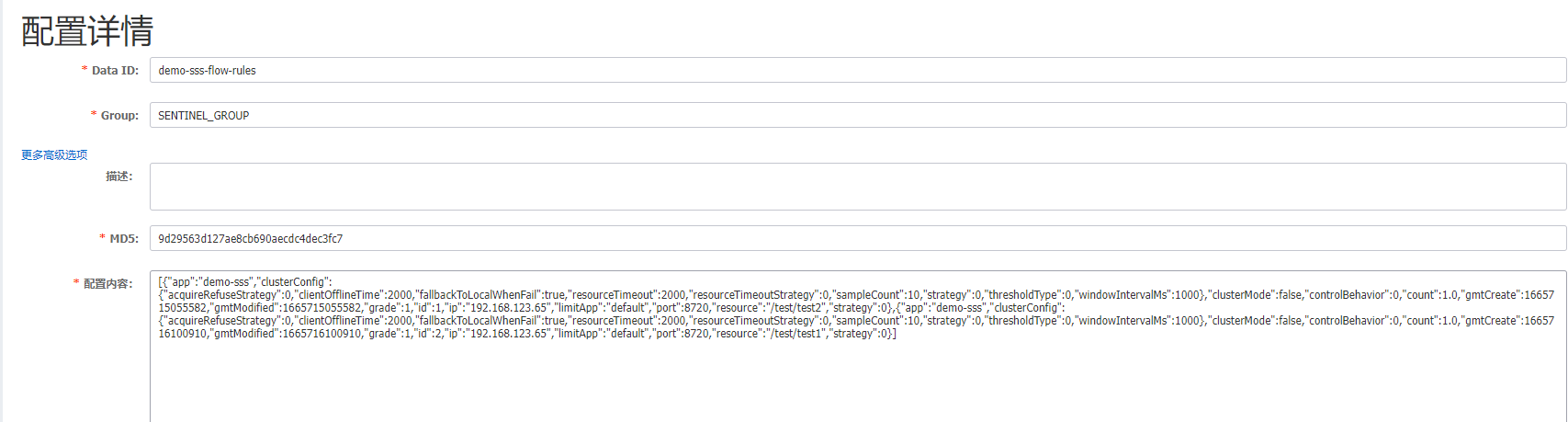

7.nacos新增命名空间sentinel-rule，第四步未指定可以不用配置

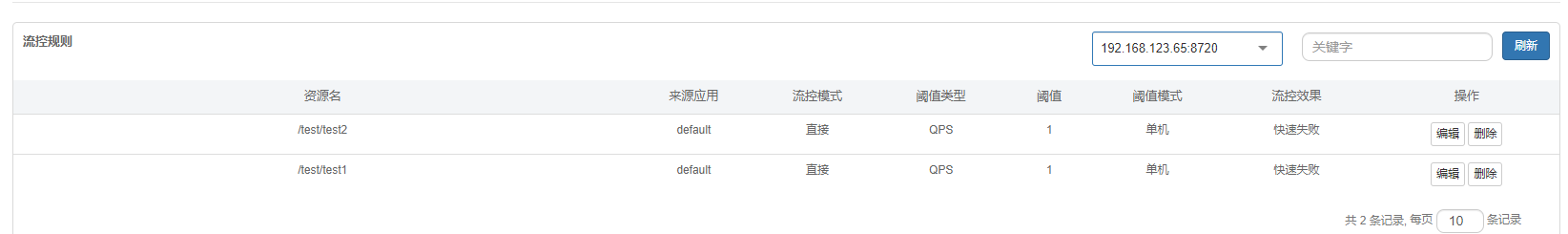

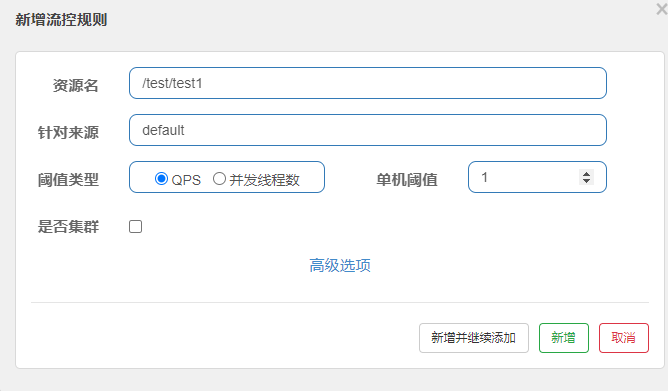

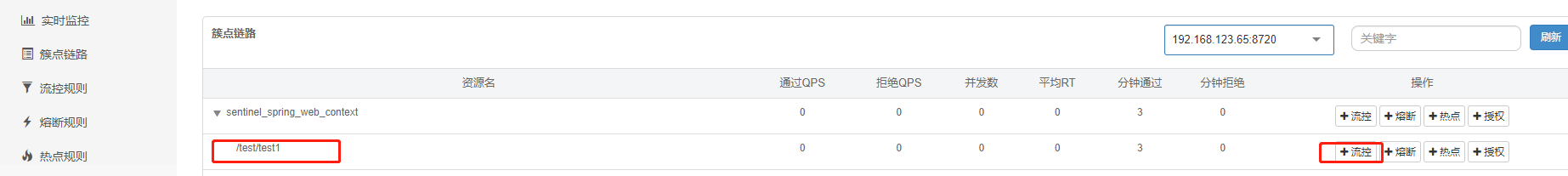

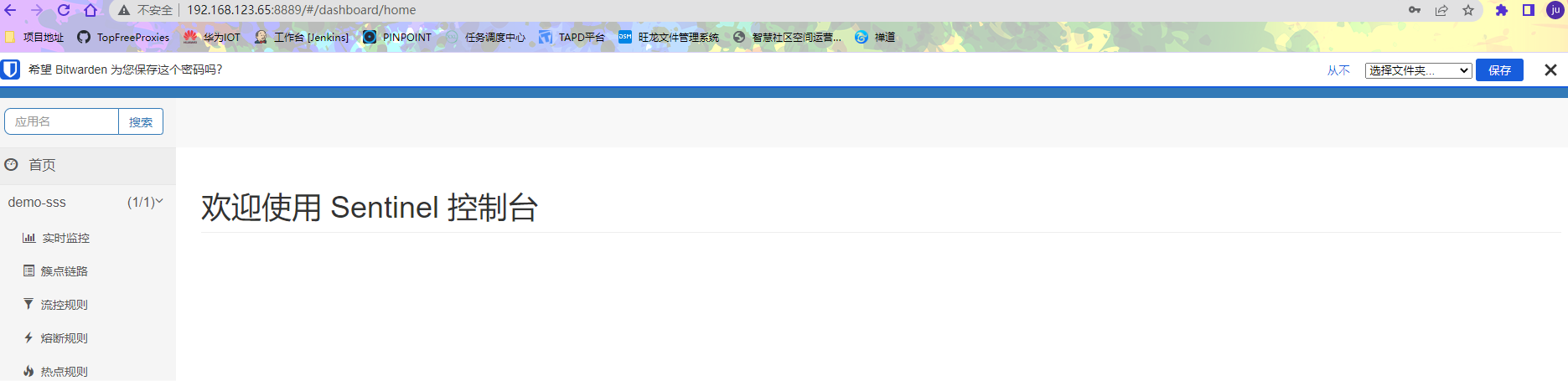

8.启动服务完成Sentinel-Dashboard配置

9.springboot引入依赖

FAQ:如果新增规则不显示，可能是自己引入fastjson版本不对，移除自己引入fastjson

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
            <version>2.2.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-datasource-nacos</artifactId>
            <version>1.8.5</version>
        </dependency>

10.服务配置yml

spring:
  cloud:
    sentinel:
      transport:
        dashboard: 192.168.123.65:8889
        clientIp: 192.168.123.65
      eager: true
      datasource:
        flow:
          nacos:
            server-addr: ydfm.cc:8848
            dataId: ${spring.application.name}-flow-rules
            groupId: SENTINEL_GROUP
            namespace: sentinel-rule
            rule-type: flow
